Choosing the right breaker plays a very important role in terms of safety,performance and long term reliability. Many homeowners often ask this question: what size breaker for the water heater should you use, especially when installing a new unit or troubleshooting some electrical issues. The answer related to size depends upon a lot of factors like wattage, voltage, heater type and electrical code requirements.
Our team at MileHi HVAC makes sure that all the systems are installed correctly and safely. As using the wrong water heater breaker size leaks to tripping, overheating and serious electrical hazards. This guide explains everything to you in a clear and practical way.
importance of breaker size for water heaters
The main function of breakers is that they control how much electrical current your water heater can safely draw. There are conditions that when the size of the breaker is too small it trips repeatedly and if the size is large then it fails to trip when needed. This often leads to overheating and causing a wire.
That’s why selecting the correct hot water heater breaker size is critical. So a properly sized breaker ensures:
- Safe and reliable operations
- Compliance with electrical codes
- Efficient heating performance
- Reduced risk of any electrical damages
Understanding what amp breaker for the water heater prevents all the costly mistakes and ensures that the system performs effectively.

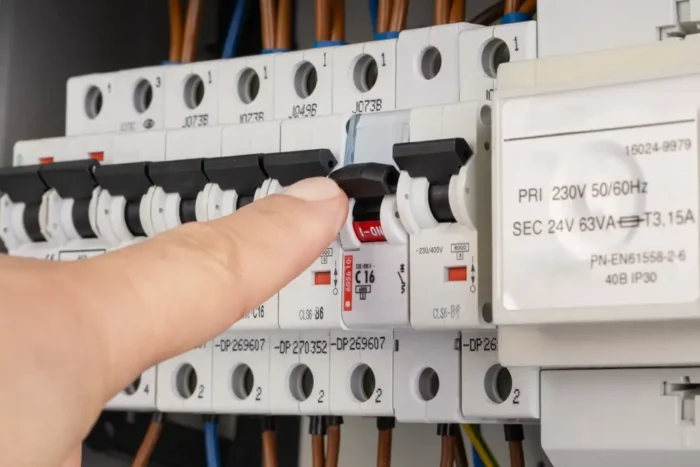

Standard electric water heater breaker size explained
Most residential water heaters operate on 240 volts and range between 3000 and 5500 watts. The standard electric water heater breaker size is 30 amps. For example, a 4,500-watt heater draws approximately 18.75 amps. However electrical codes require a safety margin of 125% there are different sizes of breaker so a standard 30 amp breaker is used.
For the typical tank style units 30 amp is the most common water heater breaker size. But the larger units with higher wattage may require 40 amp or 50 amp breakers.depending upon the specifications.
You may read Heater Maintenance Service Cost?
Calculating Breaker Size for Different Heater Types
If you really want to know what size breaker for the water heater you should use then follow this simple calculation.
First check the wattage rating on the heater’s label. Divide the wattage by voltage. Then multiply the result by 1.25 to meet the safety code requirements.
For instance:
A 4,500-watt heater ÷ 240 volts = 18.75 amps
18.75 × 1.25 = 23.4 amps
After this the standard breaker size above this value is 30 amps. This calculation confirms the electric water heater breaker size.
By following this calculation or method you can easily choose the right amp breaker for the water heater safely and accurately.
Breaker Size for Different Types of Water Heaters
Always remember that breaker size varies depending upon the type because not all the water heaters have the same power requirements.
Tank Water Heaters
Traditional tank heaters usually require a 30 amp breaker with the 10 gauge wiring. This is one of the most common setup and use for most households.
Tankless Water Heaters
Like other system tankless water heaters require more power because that have to deliver hot water instantly. That’s why most households require multiple breakers like 50 amp circuits. That’s why the hot water heater breaker size is much higher than the standard tanks.
Heat Pump Water Heaters
Heat pump models are more energy efficient and require less power. But some systems have backup power which sometimes increases the power demand. However the correct water heater breaker size depends upon the compressor and backup system.
Key Factors That Determine Breaker Size
What size breaker for water heater should you use influence several important factors like:
Wattage of the Heater
High wattage means having higher electrical demand which also needs a larger size breaker.
Voltage requirements
Smaller systems normally use 120 volts but most residential systems run on 240 volts.
Electrical codes
Some local building codes require breakers to handle almost 125% of heaters load. This ensures complete safety and compliance.

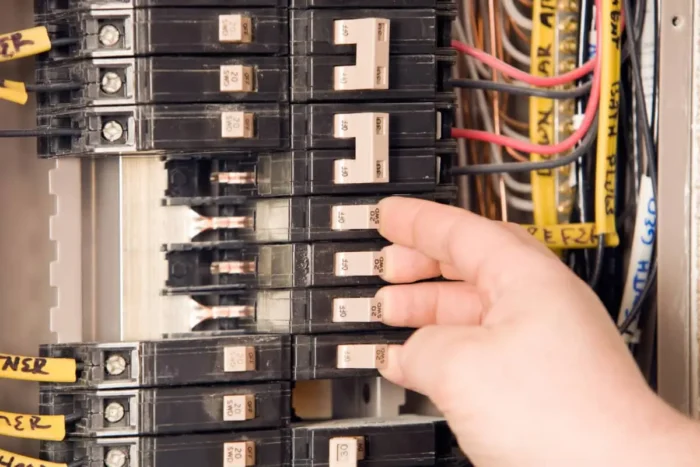

Water heater circuit breaker size and electrical code requirements
The National Electrical Code treats water warmers as non-stop loads. This way the water heater circuit breaker size ought to be rated at one hundred twenty five percentage of the heater`s amperage draw. This rule prevents overheating and guarantees lengthy-time period protection.
For example, if a water heater attracts 25 amps, it ought to be related to a breaker rated for as a minimum 31.25 amps, which rounds as much as a 40-amp breaker. This is why guessing or reusing an antique breaker may be dangerous.
At Milehi HVAC, we constantly length breakers primarily based totally on producer necessities and code standards, in no way assumptions.
Electric water heater breaker size vs heat pump models
A heat pump water heater breaker size differs from a conventional electric powered tank system. Heat pump water warmers are extra energy-green and normally draw much less electricity at some point of ordinary operation. Many warmness pump fashions perform on a hundred and twenty volts or 240 volts and can require a breaker among 15 and 30 amps.
However, a few warmness pump water warmers consist of electric powered backup factors that boom electric demand. In those cases, the electric water heater breaker size have to be massive sufficient to address each the compressor and heating factors.
Because of those variations, warmness pump structures have to continually be sized in line with producer specifications. Using an undersized breaker can also additionally save you the unit from working nicely or disable backup heating.
Common Problems with Incorrect Breaker Size
Using the wrong and incorrect breaker breaker size leads towards several issues.
- Frequent tripping indicates that size of breaker is too small
- Due to electrical problems there are burning smells or buzzling sounds
- Overheating indicates that size of breaker is too large
- Poor heating performance and slow recovery time
All these problems show that selecting the right electric water heater breaker size is essential.

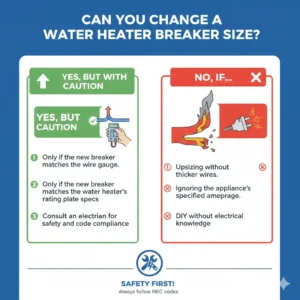

Can you change a water heater breaker size?
Changing a breaker size isn’t always as easy as swapping out one component. The wiring have to additionally be able to managing the multiplied amperage. Installing a bigger breaker with out upgrading cord length is extraordinarily dangerous.
If you’re upgrading to a higher-wattage water heater or switching to a distinct form of system, a certified expert need to look into the electric panel, wiring, and cargo potential. Milehi HVAC works with depended on electric companions to make certain each water heater set up is secure and code-compliant.
Why Water Heaters Use Double-Pole Breakers
Water heaters usually require 240 volts which is usually supplied through 120 volt lines. A double pole breaker connects both lines delivering the required power.
If any issue or fault occurs both lines shuts off simultaneously. That’s why using a single pole breaker for a water heater is ineffective and unsafe.
Most of the standard system uses:
30-amp double-pole breakers for tank heaters
40-amp breakers for high-wattage units
50-amp breakers for large tankless systems
Choosing the correct water heater breaker size ensures both safety and safe operations.
Signs of wrong breaker size
If you have not required water heater breaker size then it shows some warning signs:
- Inefficient heating and slow water recovery
- Frequent circuit tripping
- Unusual and burnt smells
- Warm breaker panel service
- Electrical buzzing
If you notice these signs it means that your unit is using more electricity and the breaker is unable to handle it.
How professionals determine the correct breaker size
To decide the precise electric water heater breaker size, specialists do not forget the unit`s wattage, voltage, cord gauge, breaker rating, and nearby electric codes. The statistics plate at the water heater gives important information, however right interpretation is critical.
Homes with older electric panels may additionally want improvements to soundly assist contemporary-day water warmers. This is particularly proper whilst putting in high-potential or warmness pump structures that vicinity distinct needs on the electric system.
Choosing right breaker with MileHi HVAC
When people contact us for help and for heater services we provide them several things like:
- Proper breaker installation
- Ensuring safety during operations
- Water heater installation and replacement
- Verify the wattage and wire gauge
- Complete electrical analysis
Professional assistance from MileHi HVAC
Electrical work also requires safety concerns. Professional installation is essential in these cases which ensures correct water heater breaker size,proper wiring and safe operation.
At MileHi HVAC we not only install breakers but also inspect the entire system for efficiency and reliability. We also consider the following factors when choosing the correct breaker.
- Panel capacity
- Wire size and condition
- Heater voltage and wattage
- Local code requirements
Conclusion
Figuring out what size breaker for the water heater is crucial for safe and efficient performance. Although 30 amps is common, it depends on the heater type and specifications—so always check the label or manual. These units provide comfort but can be risky without proper care. That’s why water heater maintenance Denver CO is essential to prevent electrical hazards. MileHi HVAC can help you choose the right breaker, wiring, and setup for your system. Need expert help? Call MileHi HVAC today for safe water heater maintenance!
FAQS
Can a water heater percentage a breaker with different appliances?
No. A water heater need to have a devoted circuit with its very own breaker to satisfy protection codes.
Does a warmth pump water heater want a exclusive breaker length?
Yes. The warmth pump water heater breaker length relies upon on voltage, compressor load, and whether or not electric powered backup factors are included.
Why does my breaker maintain tripping after putting in a brand new water heater?
This frequently suggests the water heater circuit breaker length is simply too small or the wiring isn’t always well matched to the gadget.
What size breaker do I need for a water heater?
A 240V water heater usually needs a 30-amp breaker; calculate 125% of the heater’s amp draw.
Can I use a 40-amp breaker for a water heater?
Not recommended—40 amps may overload the wiring; match the breaker to the heater’s specs.
Does a water heater need a 30-amp breaker?
Most 4500–5500W water heaters require a 30-amp breaker.
Can a 4500-watt water heater be on a 20-amp breaker?
No, it draws ~18.75 amps and needs a 30-amp breaker for safe operation.
