Moving a water heater seems simple until you try lifting one. These bulky tanks weigh between 100 and 150 pounds when empty. The question can you lay a water heater on its side comes up often during moves or replacements.
The short answer is no, you should not lay a water heater on its side. Doing so risks damaging internal parts and creating safety hazards. But emergencies happen, and sometimes you have no choice. Let’s break down what you need to know to protect your investment.
Can You Lay a Water Heater on Its Side? Deep Breakdown
Water heaters are built to stand upright. Their design depends on gravity and proper positioning to work correctly, which is why people often ask if can you lay down a water heater safely.
The glass lining inside your tank is fragile. When you tip the unit sideways, this protective coating can crack or chip. These small breaks let water touch bare metal, which leads to rust and early failure. Most manufacturers warn against side transport in their manuals.
The dip tube is another concern. This plastic pipe sits inside your tank and directs cold water to the bottom for heating. Laying the unit flat can snap or dislodge this tube. Without it working right, you’ll get lukewarm showers because cold and hot water mix at the top.
Gas water heaters face extra risks. The burner assembly sits at the bottom and contains delicate parts. Tipping disturbs the pilot light mechanism and thermocouple positioning. Oil from these components can leak into the combustion chamber when sideways.

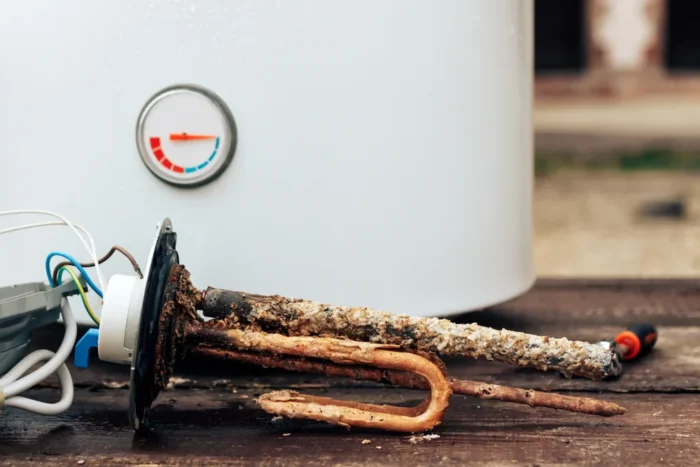

Electric models have heating elements that stick into the tank horizontally. Side positioning puts stress on these connections and can crack the gaskets that keep water from leaking out around them.
The anode rod runs vertically through your tank to prevent corrosion. This magnesium or aluminum rod attracts minerals that would otherwise eat away at your tank walls. Horizontal transport can bend or break this rod, cutting your tank’s life short.
Why You Shouldn’t Transport a Water Heater on Its Side
Professionals at Milehi Hvac who handle water heater installation in Denver see damaged units weekly from improper transport. Here’s what goes wrong.
Internal Damage Risks
The tank insulation between the outer shell and inner tank shifts when laid flat. This fiberglass or foam material keeps your water hot and your energy bills low. Once compressed or displaced, it won’t insulate as well. Your heater will work harder and cost more to run.
Sediment buildup at the tank bottom is normal over time. When you tip the heater, this gritty material flows throughout the tank and can clog the dip tube or settle in the wrong places. Getting it back to normal position doesn’t fix where the sediment landed.
Warranty Concerns
Most water heater warranties include specific transport requirements. Major brands like Rheem, AO Smith, and Bradford White state upright transport only. Lay it sideways, and you might void that 6 to 12-year warranty. One service call costs more than renting a proper dolly or truck.
Gas Line and Electrical Issues
Gas models have a control valve at the bottom with tiny passages for gas flow. Tipping lets debris enter these passages. Even small blockages cause the pilot light to go out repeatedly or create uneven heating.
The pressure relief valve on top must stay at the highest point. This safety device releases excess pressure to prevent explosions. Sideways positioning can let water enter the valve mechanism, causing it to malfunction or leak later.
Connection Problems
Water inlet and outlet pipes connect at the top. These fittings handle significant pressure and heat. Laying the heater flat puts weight on these connections from an angle they weren’t designed for. Threads can crack, and compression fittings can loosen.
How to Safely Transport a Water Heater on Its Side
Sometimes you have no choice. Your truck won’t fit an upright heater, or you’re going up stairs. Follow these steps to reduce damage.
Preparation Steps
Drain the tank completely. Water adds 400 pounds or more to transport weight. Open the drain valve at the bottom and let it run until empty. This takes 20 to 30 minutes for a 50-gallon tank.
Turn off power or gas at least an hour before moving. Electric heating elements need cool-down time. Gas burners should be cold to touch before transport.
Disconnect all lines carefully. Cap the gas line immediately if it’s a gas model. Use pipe caps from any hardware store to seal water connections. This keeps debris out during the move.
Take photos of all connections before disconnecting anything. These pictures save hours during reinstallation and prevent crossed lines.

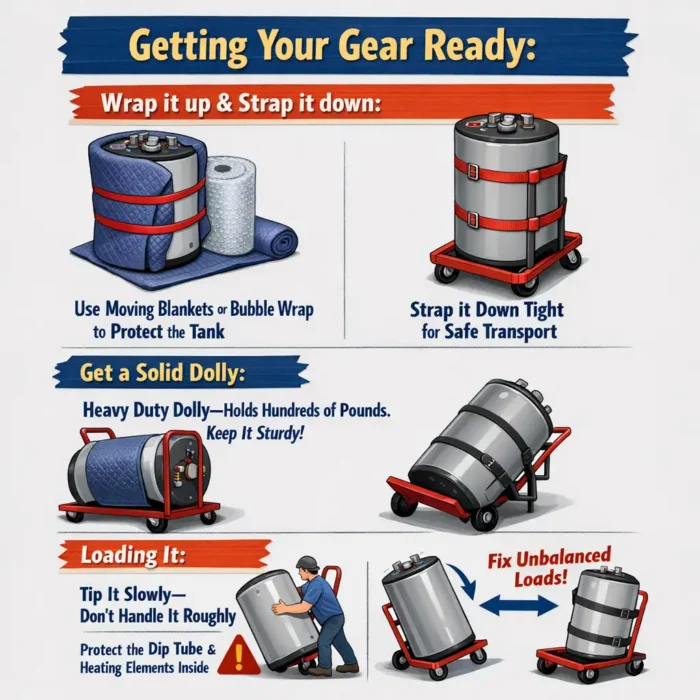

Proper Positioning
If you must lay it down, choose the side carefully. Place the heater so the drain valve faces up when possible. This position protects the valve and keeps sediment from flowing into connections.
Never let the control panel or thermostat touch the truck bed. These components are sensitive to pressure. Put blankets or foam between them and any hard surface.
Secure the unit with ratchet straps, not rope. Rope stretches and lets the heater shift during turns. Strap across the middle and at both ends. Make them snug but not crushing.
During Transport
Drive like you’re carrying eggs. Sudden stops slam the tank forward. Sharp turns roll it side to side. Both movements shake internal components loose.
Keep the trip under 30 minutes when possible. The longer it sits horizontal, the more chance for damage. Plan your route to avoid bumpy roads and excessive stops.
Check your straps every 10 minutes on longer trips. Vibration loosens even the tightest restraints.
After Transport
Let the heater sit upright for at least 4 hours before connecting anything. This settling time lets the dip tube, anode rod, and insulation return to proper position. Sediment also settles back to the bottom.
Check for loose parts by gently rocking the heater. Anything rattling inside means damage. Look for dents or cracks in the outer shell too.
Inspect all connection points before refilling. Threads that look bent or cracked need repair before you add water pressure.
Fill the tank slowly with cold water only. Hot water can shock components that shifted during transport. Open a hot water faucet somewhere in your house while filling to release air pockets.
Milehi Hvac offers professional water heater installation in Denver that includes proper transport and positioning. Our technicians know how to move these units without risking your warranty or creating safety issues.
You may read Is A Noisy Water Heater Dangerous?
Special Considerations for Different Types
Tankless water heaters are lighter and more transport-friendly. You can lay these flat without the same risks as tank models, making it easier when you need to transport water heater on side during a move. Just protect the circuit boards from impacts.
Heat pump water heaters combine a tank with a compressor on top. Never lay these sideways. The refrigerant lines can leak, and the compressor oil flows where it shouldn’t, so trying to transport water heater on side can cause serious damage.
Solar water heaters have separate tanks and collectors. Transport these pieces individually in upright positions when possible to avoid issues that come from attempting to transport water heater on side.
Final Thoughts
Can you lay a water heater on its side? Technically yes, but you’re risking expensive damage and safety hazards. The internal design assumes upright positioning. Gravity, component placement, and material durability all depend on vertical orientation.
If you must transport one horizontally, follow every precaution. Even then, expect a shorter lifespan and possible performance issues. The $50 to $100 to rent a proper appliance dolly or taller truck beats a $800 replacement in a few years.
Contact Milehi Hvac for expert water heater installation in Denver. We handle the heavy lifting and transport safely, protecting your investment from day one.
FAQs
How long can a water heater lay on its side?
Limit horizontal positioning to under 2 hours total. The longer it stays sideways, the more internal damage occurs. Four hours upright after transport helps components resettle.
Will my warranty cover damage from side transport?
No. Every major manufacturer specifies upright transport only. Side positioning voids most warranties immediately, even if you haven’t installed the unit yet.
Can I lay a new water heater on its side?
New units face the same risks as old ones. The factory glass lining and internal components are just as fragile. Buy units from stores that deliver upright when possible.
What’s the best way to move a water heater upstairs? Rent an appliance dolly with stair climbers. These wheeled tools keep the heater upright while you navigate steps. Two people minimum for any water heater move.
Do tankless water heaters have the same restrictions?
Tankless models tolerate side positioning better since they lack a tank and internal rods. Still protect circuit boards and keep them dry during transport.
